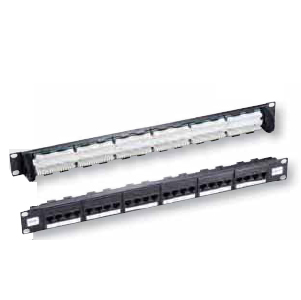

UTP Elite Patch Panels
font:Small In Large

pleach Elite Enhanced Category 5 High Density Patch Panels provide exceptional performance for high speed LANs including Gigabit Ethernet applications. The high density format is ideal where cabinet space is at a premium.
Elite Enhanced Category 5 high density panels achieve optimum transmission performance by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features easy to use slide in labels. The rear utilities colour codes cable saddles and hook and loop cable retainers.
All of our Enhanced Category 5 Panels offer extended PowerSum characteristics and exceed the TIA/EIA-568- B specifications. When combined with Enhanced Category 5 Modules and UTP cable, the link will perform well in excess of the Enhanced Category 5 specification.

Features & Benefits
Suitable for Gigabit Ethernet
application
Manufactured in the UK
Individual colour coded saddles allow
quick and accurate terminations
Top quality sockets
Fully QA tested
Ordering Information
Product Description Part Number
Elite Enhanced Category 5 High Density 009-001-009-09
24 way UTP Panel
Specification
Width 19” (483mm)
Depth 30mm
Height 1u (44mm)
Fixing Centres 467mm
Material Mild Steel Sheet CR4 to BSEN 10130-1999 DC01.
Plastic Inserts ABS Thermoplastic resin with grade
UL94 V0 at 1.5mm flame retardancy.
Finish Black powder coated to BS6496
Socket Labels 9mm numbered card to BS6496
IDC Labels Individual colour coded labels to T568B
Cable Guide Individual cabling saddles with
cable tie positioned for left or right entry.
IDC Blocks 4 way industry standard IDC blocks
PCB Groups of 4 identical circuits on 1.6mm
double sided PTH boards
Conforms to TIA/EIA-568-B Enhanced Category 5 specification
