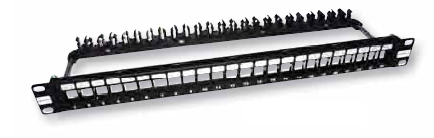

The 24 and 48 way keystone patch panel offers ultra high density and the capability for Category 6 data transmission performance levels.
The patch panel is supplied unloaded and accepts Category 6 performance keystone modules which are simply clicked into position.
Patch panel installation and termination time can be greatly reduced when pleach tool-less keystone modules are used in the panel, making for a snap-to-fit, quick and easy termination. To further increase on-site installation efficiency, pleach Express pre-terminated and pre-tested modules can also be used.

Features & Benefits
24 and 48 high density
Category 6 performance
Suitable for pleach Express
assemblies
Suitable for tool-less keystone modules
Integral cable management bar

Ordering Information
Product Description Part Number
CCS Unloaded 24 Way Unshielded Keystone Panel 009-010-010-05
CCS Unloaded 48 Way Unshielded Keystone Panel 009-010-010-10
CCS Keystone Panel Blanks (Black) 009-010-009-10
Specification
Width 483 mm (19’’)
Depth 155 mm
Height 44.45 mm
Material Mild Steel
Finish Black Paint - Fine Textured
