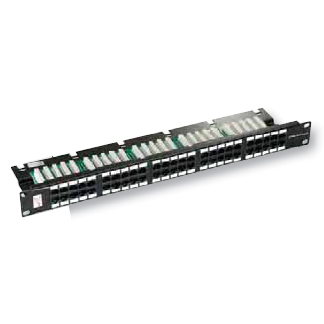

Cabinet space is too valuable to have it taken up by stacks of voice panels, which is why pleach offer a high-density voice panel packing 50 dedicated voice ports in a 1u panel.
Each 8-way RJ45 socket has three pairs connected. This ensures that the panels can be used with analogue,digital and ISDN systems.

Features & Benefits
50 voice ports in 1u
8-way RJ45 sockets with three pairs connected
Analogue, Digital and ISDN systems supported

Ordering Information
Product Description                 Part Number
50 Way Voice Panel                 009-001-002-10

Specification

Width                  19” (483mm)
Depth                  120mm
Height                 1U (44mm)
Fixing                  Centres 467mm
Material               1.5mm thick mild steel CR4 BS1449
Finish                  Black Powder Coat to BS6496
Socket Labels       Silk screened blocks
IDC Labels            Pairs indicated by PIN numbers
RJ45 Sockets        2 x 5 unshielded stacked RJ45 jacks
IDC Blocks            Industry standard 4 way IDC’s
PCB                     1.6mm Double Sided PTH boards
Wiring Spec.         Pairs 1, 2 & 3 connected straight through.
                                Pair 4 not connected
