The Optix multi-purpose tight buffered distribution cable provides a highly cost effective solution to all internal / external datacomms cabling requirements, particularly where on site direct connectorisation is the preferred termination technique.

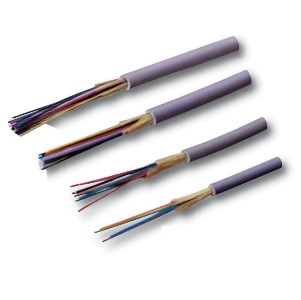

The cable consists of individually colour coded 900μm secondary coated fibres, embedded in an Aramid yarn strength member, and oversheathed with a single Low Smoke Zero Halogen (LSZH) outer jacket. The outer jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.
A choice of multimode and singlemode fibre types and specifications are offered (see fibre specification sheet) with fibre counts from four to twenty-four in the standard range.
Their small diameter, light weight and excellent environmental performance makes these cables ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.

Free Cut to Length Service
pleach hold extensive stock of a complete range of multi purpose uni-loose tube distribution cables. We offer a fast turnaround cut to length service providing custom lengths to your exact requirements. This service is free of charge, and all orders from stock can be available for next day delivery.

Features & Benefits
Fire retardant LSZH jacket
Up to 24 fibres
Choice of fibre type and specification
Small diameter
Water and UV resistant
Internal or external use
Easy to handle
Small bending radius
Low cost

Specification
Jacket Material Low Smoke Zero Halogen
Number of fibres 4 8 12 16 24
Nominal cable diameter (mm) 5.0 6.0 7.0 7.0 8.0
Nominal cable weight (kg/km) 26 40 55 55 95
Min bend radius (mm)
Long term 100 100 130 130 230
Short term 50 50 75 75 115
Max tensile strength (N)
Permanent 225 280 335 335 335
Installation 450 560 670 670 670
Operating temp range (°C) -10 to +55
Fibre Specification See fibre specification data sheet

Ordering Information
Product Description                                                                     Part Number
4 Core Internal/External Tight Buffered OM1 62.5/125                     002-005-005-33
8 Core Internal/External Tight Buffered OM1 62.5/125                     002-005-005-53
12 Core Internal/External Tight Buffered OM1 62.5/125                   002-005-005-63
16 Core Internal/External Tight Buffered OM1 62.5/125                   002-005-005-73
24 Core Internal/External Tight Buffered OM1 62.5/125                   002-005-005-81
4 Core Internal/External Tight Buffered OM2 50/125                       002-005-006-26
8 Core Internal/External Tight Buffered OM2 50/125                       002-005-006-27
12 Core Internal/External Tight Buffered OM2 50/125                     002-005-006-28
16 Core Internal/External Tight Buffered OM2 50/125                     002-005-006-30
24 Core Internal/External Tight Buffered OM2 50/125                     002-005-006-32
4 Core Internal/External Tight Buffered OM3 50/125                         002-005-004-28
8 Core Internal/External Tight Buffered OM3 50/125                         002-005-004-32
12 Core Internal/External Tight Buffered OM3 50/125                     002-005-004-34
16 Core Internal/External Tight Buffered OM3 50/125                     002-005-004-36
24 Core Internal/External Tight Buffered OM3 50/125                     002-005-004-38
4 Core Internal/External Tight Buffered OS2 9/125                         002-005-011-04
8 Core Internal/External Tight Buffered OS2 9/125                         002-005-011-08
12 Core Internal/External Tight Buffered OS2 9/125                       002-005-011-12
16 Core Internal/External Tight Buffered OS2 9/125                       002-005-011-16
24 Core Internal/External Tight Buffered OS2 9/125                       002-005-011-24
