pleach Starlight? pre-terminated plug and go fibre system provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.

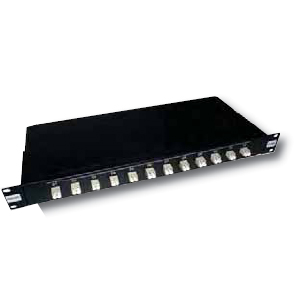

The Starlight¤ pre-terminated standard panel offers users the benefit of having up to 48 duplex LC or 24 duplex SC patching couplers in one panel. Cable entry is via up to two pre-terminated MTP¤ brand bulkheads at each side, resulting in extra installation clearance at the rear of the panel. Inside, pre-terminated multiple fibre cable splits off to either LC or SC patching couplers at the front.
Features & Benefits
Utilises high density MTP? brand connectors
Terminated in a quality controlled factory
Reduces installation time and costs
12, 24 and 48 duplex LC option
12, 24 duplex SC optio
Ordering Information
Product Description Part Number
Starlight? OM2 50/125 Standard Panels
6 duplex LC panel 009-025-012-12
12 duplex LC panel 009-025-012-24
24 duplex LC panel 009-025-012-48
36 duplex LC panel 009-025-012-72
48 duplex LC panel 009-025-012-96
12 duplex SC panel 009-025-022-24
24 duplex SC panel 009-025-022-48
Starlight? OM3 50/125 Standard Panels
6 duplex LC panel 009-025-010-12
12 duplex LC panel 009-025-010-24
24 duplex LC panel 009-025-010-48
36 duplex LC panel 009-025-010-72
48 duplex LC panel 009-025-010-96
12 duplex SC panel 009-025-020-24
24 duplex SC panel 009-025-020-48
Starlight? OS2 9/125 Standard Panels
6 duplex LC panel 009-025-011-12
12 duplex LC panel 009-025-011-24
24 duplex LC panel 009-025-011-48
36 duplex LC panel 009-025-011-72
48 duplex LC panel 009-025-011-96
12 duplex SC panel 009-025-021-24
24 duplex SC panel 009-025-021-48
Specification
Finish Fine textured black paint
Material Mild steel
Width 483mm
Depth 260mm
Height 1U
