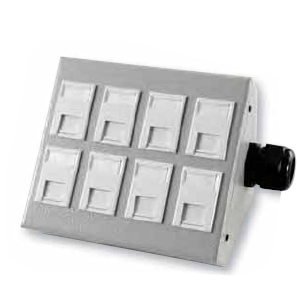

The 8 way LJ6C desktop box gives users the capabilities of having high density usage, plus the flexibility to move outlets without having to worry about floorboxes or outlet points on the wall.
The unit fits neatly onto any worktop and has mounting holes in the base to ensure it will stay firmly secured to its surface.
Terminating the outlets in the box is quick and easy, once the cable has been fed through the cable gland terminate as usual, clip the outlet into place, once all the outlets are in place, tighten the cable gland and the unit is ready for use.
This unit has been designed specifically for use with the pleach Enhanced Category 5 LJ6C module, which exceed the TIA/EIA-568-B specifications.
The 4 or 6 way desktop pod is a convenient high density desk outlet. Incorporating industry standard IDC connections in a robust steel enclosure. This unit is suitable for a multitude of applications, including underfloor transition points.

Ordering Information
Product Description                     Part Number
8 way LJ6C Desktop Box             008-009-004-08
4 way Cat5e Desk Mount Pod     009-034-000-00
6 way Cat5e Desk Mount Pod     009-036-000-00
4 way Cat6 Desk Mount Pod       009-043-000-10
6 way Cat6 Desk Mount Pod       009-043-000-20
Specification
Desktop Box Size                         135x103x103mm
Desk Pod Size                             135x45x60mm
Material                                     Mild steel sheet CR4 to BSEN 130-1999DCO1
Conforms to                               TIA/EIA-568-B Enhanced Category 5  or Category 6 specification

Features & Benefits
8 way LJ6C Desktop Box
8 Shuttered outlets in single unit
Choice of cable entry points
Quick and Easy installation
Custom colours to order Deskmount Pods
High density 4 or 6 way
Cat 5e or Cat 6
Custom colours to order
