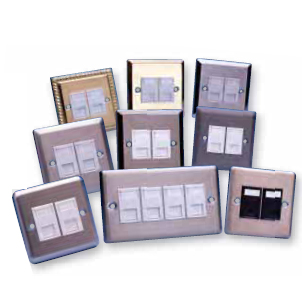

pleach metal faceplates are ideal for installing into situations where matching the surrounding décor is important.
These faceplates have been designed specifically for pleach LJ6C module, they fit perfectly onto flush wall mount back boxes.
The face plates are available in a wide selection of finishes and all come in single, dual and 4 way variations and are available from stock. The different finishes are; Georgian Rope Edge Brass, Victorian Polished Brass, Graphite, Brushed Steel, Mirror Chrome, Satin Chrome and Iridium Black.
Features & Benefits
Available in a wide range of finishes
Designed to fit pleach LJ6C Module
Available in 7 different finishes
Single and Dual gang faceplates are available
Also available unloaded
Suitable for Cat 5E & Cat 6 LJ6Cs
Specification
Width Depth Height
Single 91mm 91mm 9mm
Double 151mm 91mm 9mm
Finishes
Georgian Rope Edged Brass                     Hand-polished pressed brass
Victorian Polished Brass                             Hand-polished pressed brass
Mirror Chrome                                         Bright Nickel and Chromium
hand-polished                                         pressed Steel plate
Satin Chrome Satin Chrome plated hand-polished
pressed Steel Plate
Iridium Black Black Chrome plate hand-polished
pressed Steel Plate
Graphite Grey painted finish on Zintec plate
Brushed Steel Matt Chrome finish achieved
using brushed Stainless Steel

Ordering Information
Product Description                                         Part Number
Single Loaded One Gang C5E
Georgian Rope Edge Brass faceplate                 008-001-020-00
Victorian Polished Brass faceplate                     008-001-020-01
Mirror Chrome faceplate                                     008-001-020-02
Satin Chrome faceplate                                      008-001-020-03
Iridium Black faceplate                                     008-001-020-04
Graphite faceplate                                             008-001-020-05
Brushed steel faceplate                                     008-001-020-06
Dual Loaded One Gang C5E
Georgian Rope Edge Brass faceplate                 008-001-014-00
Victorian Polished Brass faceplate                     008-001-014-01
Mirror Chrome faceplate                                  008-001-014-02
Satin Chrome faceplate                                    008-001-014-03
Iridium Black faceplate                                     008-001-014-04
Graphite faceplate                                           008-001-014-05
Brushed steel faceplate                                    008-001-014-06
Quad Loaded Two Gang C5E
Georgian Rope Edge Brass faceplate                 008-001-030-00
Victorian Polished Brass faceplate                     008-001-030-01
Mirror Chrome faceplate                                 008-001-030-02
Satin Chrome faceplate                                   008-001-030-03
Iridium Black faceplate                                    008-001-030-04
Graphite faceplate                                          008-001-030-05
Brushed Steel faceplate                                  008-001-030-06
